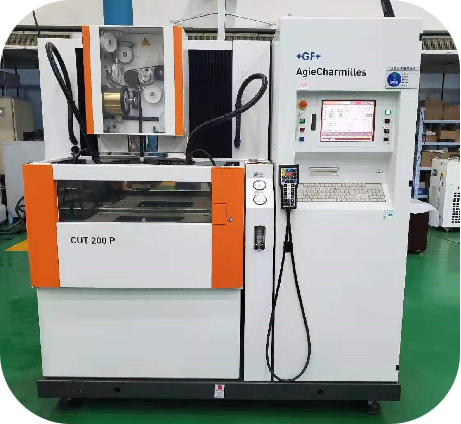

瑞士GF精密五轴四联动数控慢走丝线切割机 CUT200P
Swiss GF Precision five-axis four-link CNC slow wire cutting machine CUT200P
XYZ三轴工作行程XYZ triple-axis working stroke: 350 x 220 x 220 mm
UVt锥度行程UVt taper stroke: 350 x 220 mm
五轴光柵尺,双闭环Five-axis grating ruler, double closed loop
光栅尺分辨率Scale resolution: 0.0005mm 50nm(纳米)
XYUVZ5轴防撞保护 XYUVZ5 axis anti-collision protection
台面尺寸Table size: 680x450 x75mm
最大工件尺寸Maximum workpiece size: 1000 x 550 x 220 mm
机床外形尺寸(宽x深x高): 2030 x 2201x2000mm
Machine dimensions (width x depth x height):2030 x 2201x2000mm
最大承重工件Maximum load-bearing workpiece: 750 kg
最大锥度Maximum taper: ±30° /220 mm
标准最高加工速度Standard maximum processing speed: 340 mm2/min
最佳表面粗糙度Optimum surface roughness: 0.1μm R
瑞士GF阿奇夏米尔集团是世界顶级电火花设备制造商,该集团在高速锐削、电火花加工领域有看独特的优势,其产品以高精度、高稳定性著称。Swiss GF AgieCharmilles Group is the world's top EDM equipment manufacturer. The group has unique advantages in high-speed sharp cutting and EDM processing. Its products is well known for high accuracy and stability.
